Getting Started

The AWS chart catalog scraper that:

  • Scrapes AWS Resources and detects changes in the resource definition
  • Ingests changes from CloudTrail
  • Ingests cost data from AWS Cost & Usage Reporting
  • Links AWS EKS resources to the corresponding Kubernetes resources
Prerequisites
  • IAM Role for scraping AWS API's
  • Mission Control configured to use Pod Identity/IRSA or an AWS access key

For Cost & Usage Reporting

  • Cost and Usage Reports are configured with an Athena table
  • The AWSQuicksightAthenaAccess policy or similar is attached to config-db IAM role
  1. Configure the config-db-sa service account with a AWS IAM Pod Identity / Role
  2. Install the mission-control-aws chart
apiVersion:  helm.toolkit.fluxcd.io/v2
kind: HelmRelease
metadata:
  name: mission-control-aws
  namespace: mission-control
spec:
  chart:
    spec:
      chart: mission-control-aws
      sourceRef:
        kind: HelmRepository
        name: flanksource
        namespace: mission-control
      interval: 1m
  values:
values.yaml
  • accessKey:
    • value: string
    • valueFrom:
      • configMapKeyRef:
        • key: string
        • name: string
      • helmRef:
        • key: string
        • name: string
      • secretKeyRef:
        • key: string
        • name: string
      • serviceAccount: string
  • assumeRole: - Name of an IAM role to assume
  • cloudtrail:

    Import and correlate cloudtrail events with AWS resources

    • exclude[]:

      list of events to to exclude

      - list of events to to exclude
    • maxAge: (default: "7d") - Maximum lookback age when querying cloudtrail
    - Import and correlate cloudtrail events with AWS resources
  • compliance: (default: "true") - Import AWS Config Rule failures as insights
  • connection: string
  • costReporting:

    Scrape cost reports and match them with catalog items

    • database: string
    • enabled: boolean
    • region: string
    • s3BucketPath: string
    • table: string
    - Scrape cost reports and match them with catalog items
  • endpoint: - Custom AWS endpoint e.g. for testing with LocalStack
  • excludeResources[]:
  • global:

    Global values are values that can be accessed from any chart or subchart by exactly the same name.

      - Global values are values that can be accessed from any chart or subchart by exactly the same name.
    • includeResources[]:
    • labels:
        - yaml-language-server: $schema=values.schema.json
      • region[]:

        AWS regions to pull from

        - AWS regions to pull from
      • scraper:
        • name: string (default: "aws")
      • secretKey:
        • value: string
        • valueFrom:
          • configMapKeyRef:
            • key: string
            • name: string
          • helmRef:
            • key: string
            • name: string
          • secretKeyRef:
            • key: string
            • name: string
          • serviceAccount: string
      • skipTLSVerify: (default: "false") - Skip TLS verification
      • topology:
        • name: string (default: "aws")
      • transform:
        • changes:
          • exclude[]:
          • mapping[]:
        • relationship[]:

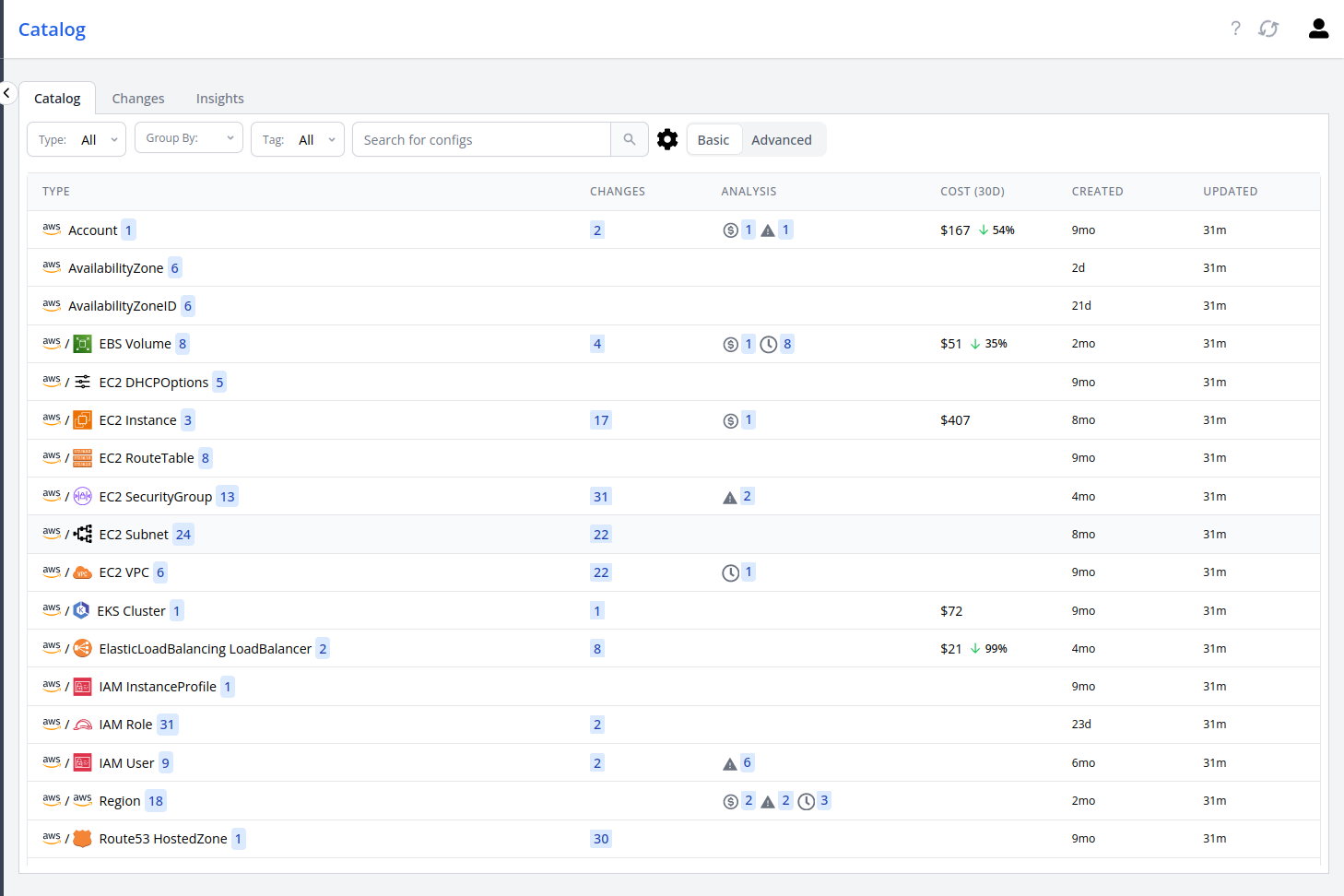

      When you go to the catalog now, you can now see all the AWS Resources
