Slack

The Slack notification service uses either Slack Webhooks or the Bot API to send messages.

Field	Description	Scheme
channel*	The channel to send messages to, in Cxxxxxxxxxx format.
token*	Your Slack app's API bot token.
botName	Bot name
color	Message left-hand border color	good, warning, danger, or any URL encoded hex color code
icon		emoji or URL
threadTS	ts value of the parent message (to send message as reply in thread)
title	Prepended text above the message

Create a Slack bot

1. Create a new app

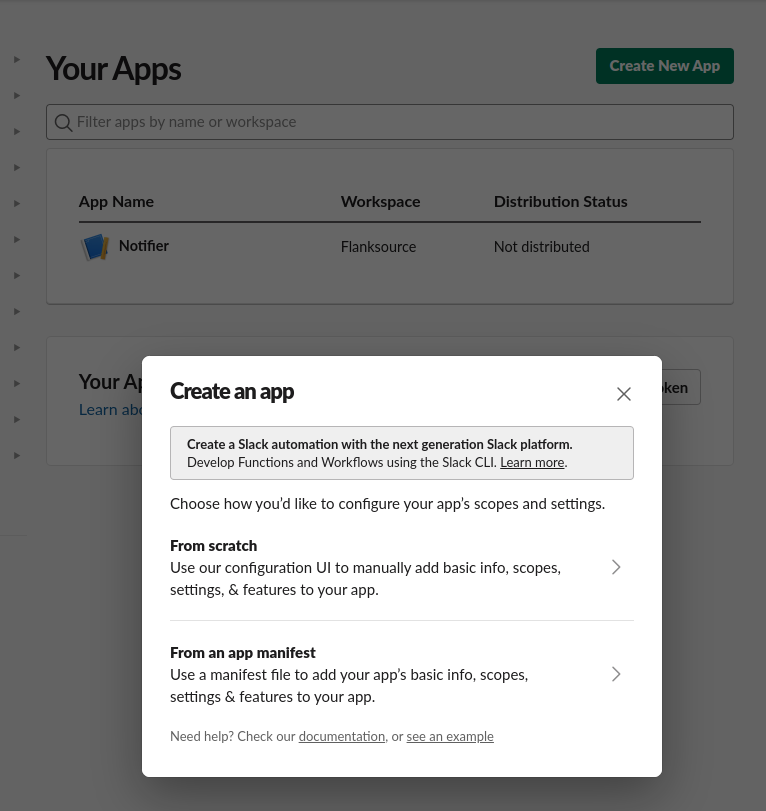

   Visit https://api.slack.com/apps and create a new app. Use the "From an app manifest" option.



2. Set up OAuth permission

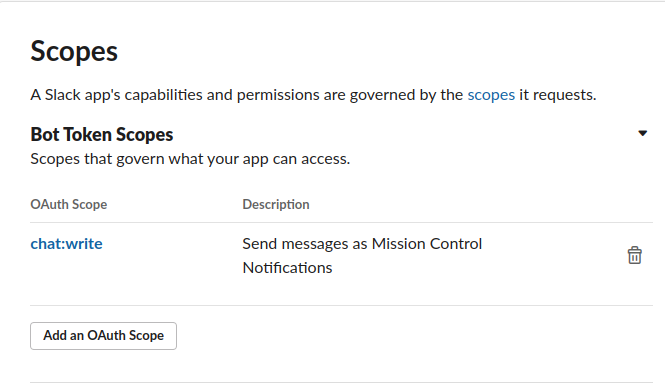

   After creating the app, you should be navigated to the app's homepage. On the left panel menu, go to Features->OAuth & Permissions. Scroll down and you should see the "Scopes" section



   Set chat:write permission

3. Install the Slack app

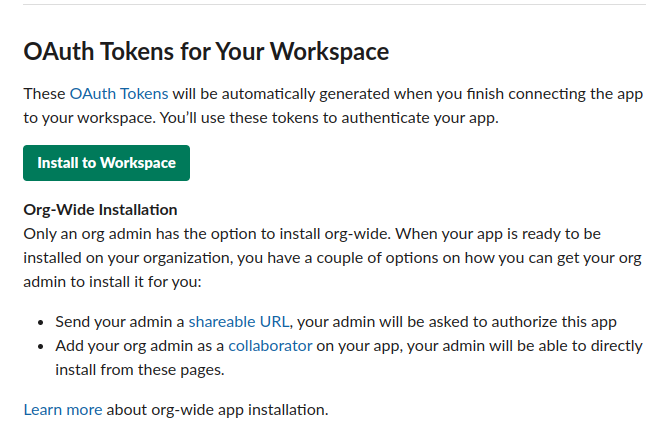

   While still on the same page, scroll up to the "OAuth Tokens for Your Workspace" section. Install the newly created app on your Slack workspace.

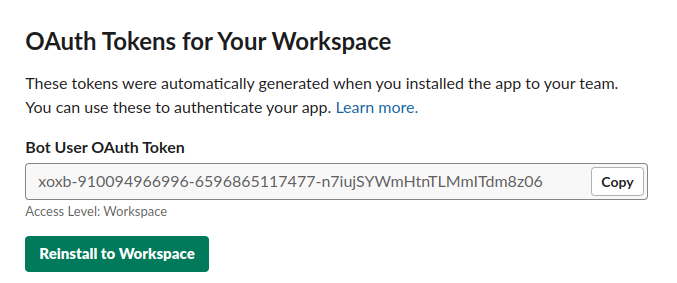

   Once you install the app you should see the OAuth token



4. Create kubernetes secret

   You will need to create a new kubernetes secret using the OAuth token created above

   slack-secret.yaml
   ---
   apiVersion: v1
   kind: Secret
   metadata:
     name: slack-credentials
     namespace: default
   stringData:
     BOT_TOKEN: xoxb-910094966996-6596865117477-n7iujSYWmHtnTLMmITdm8z06


5. Create Connection

   Create a new Slack connection using that kubernetes secret.

   slack-connection.yaml
   apiVersion: mission-control.flanksource.com/v1
   kind: Connection
   metadata:
     name: slack
     namespace: default
   spec:
     slack:
       token:
         valueFrom:
           secretKeyRef:
             name: slack-credentials
             key: BOT_TOKEN
       channel: C0123456789
       botName: Mission Control
       icon: ":robot_face:"


6. Create the notification CRD

   notification.yaml
   apiVersion: mission-control.flanksource.com/v1
   kind: Notification
   metadata:
     name: http-check-alerts
     namespace: default
   spec:
     events:
       - check.failed
     to:
       # use the slack connection as the recipient for this notification
       connection: connection://default/slack
     filter: check.type == 'http'


7. Apply the notification

   kubectl apply -f notification.yaml`
