Configs

Configs emit events when their health changes or when they are created, modified, or removed.

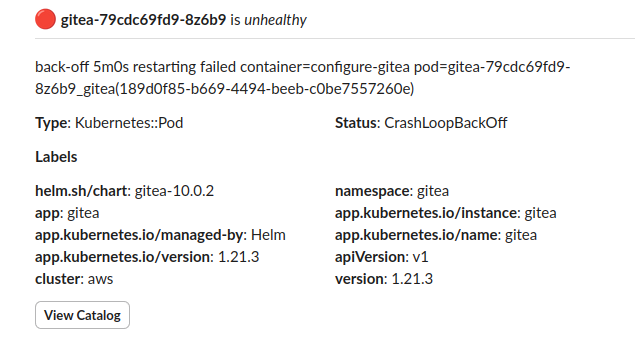

Health events

• config.healthy
• config.unhealthy
• config.warning
• config.unknown

ec2-health-notification.yaml
apiVersion: mission-control.flanksource.com/v1
kind: Notification
metadata:
  name: ec2-instance-health-alerts
  namespace: default
spec:
  events:
    - config.unhealthy
    - config.warning
  filter: config.type == 'AWS::EC2::Instance'
  to:
    email: alerts@acme.com

Default Template

The default notification template for health events is:

Title

{{ if ne channel "slack"}}{{.config.type}} {{.config.name}} is {{.config.health}}{{end}}

Template

{{if eq channel "slack"}}
{
	"blocks": [
		{{slackSectionTextMD (printf `%s *%s* is _%s_` (slackHealthEmoji .config.health) .config.name .config.health)}},
    {"type": "divider"},
    {{if .config.description}}{{slackSectionTextPlain .config.description}},{{end}}
		{
			"type": "section",
			"fields": [
        {{slackSectionTextFieldMD (printf `*Type*: %s` .config.type) }}
        {{if .config.status}},{{slackSectionTextFieldMD (printf `*Status*: %s` .config.status) }}{{end}}
				{{if ne .agent.name "local"}}
					,{{slackSectionTextFieldMD (printf `*Agent*: %s` .agent.name)}}
				{{end}}
			]
		},
		{{if .config.labels}}{{slackSectionLabels .config}},{{end}}
		{{slackURLAction "View Catalog" .permalink "🔕 Silence" .silenceURL}}
	]
}

{{else}}
{{labelsFormat .config.labels}}

[Reference]({{.permalink}})
{{end}}

State events

• config.created
• config.updated
• config.deleted

ec2-instance-updates.yaml
apiVersion: mission-control.flanksource.com/v1
kind: Notification
metadata:
  name: ec2-instance-changes
  namespace: default
spec:
  events:
    - config.created
    - config.updated
    - config.deleted
  filter: config.type == 'AWS::EC2::Instance'
  to:
    email: alerts@acme.com

Default Template

Title

{{ if ne channel "slack"}}{{.config.type}} {{.config.name}} was {{.new_state}}{{end}}

Template

{{if eq channel "slack"}}
{
	"blocks": [
		{{slackSectionTextMD (printf `:information_source: *%s* was _%s_` .config.name .new_state)}},
    {"type": "divider"},
    {{if .config.description}}{{slackSectionTextPlain .config.description}},{{end}}
		{
			"type": "section",
			"fields": [
        {{slackSectionTextFieldMD (printf `*Type*: %s` .config.type) }}
        {{if .config.status}},{{slackSectionTextFieldMD (printf `*Status*: %s` .config.status) }}{{end}}
				{{if ne .agent.name "local"}}
					,{{slackSectionTextFieldMD (printf `*Agent*: %s` .agent.name)}}
				{{end}}
			]
		},
		{{if .config.labels}}{{slackSectionLabels .config}},{{end}}
		{{slackURLAction "View Catalog" .permalink "🔕 Silence" .silenceURL}}
	]
}

{{else}}
{{labelsFormat .config.labels}}

[Reference]({{.permalink}})
{{end}}

Template Variables

Field	Description	Scheme
agent	Details of the agent that created the config.
config	Corresponding config item.
new_state	The db state change that caused this event. Only available on state events.
permalink	Link to the Catalog in mission control	string

Config Item

Field	Description	Scheme
config	Configuration	string
config_class	Class of the config item	string
created_at	Creation timestamp
delete_reason	Reason for deletion	string
deleted_at	Deletion timestamp
description	Description	string
external_id	External IDs
health	Health
id	ID of the config item
labels	Labels
name	Name	string
properties	Properties
ready	Whether the config item is ready	boolean
scraper_id	ID of the scraper	string
source	Source	string
status	Status	string
tags	Tags
type	Type	string
updated_at	Update timestamp

Agent

Field	Description	Scheme
description	Short description of the agent	string
id	The id of the agent
name	The name of the agent	string
