apiVersion: mission-control.flanksource.com/v1
kind: View
metadata:
name: deployments
namespace: mc
spec:
columns:
- description: The id of the deployment.
hidden: true
name: id
primaryKey: true
type: string
- card:
position: title
description: The deployment name.
name: name
type: config_item
- card:
position: subtitle
description: The namespace name.
filter:
type: multiselect
name: namespace
type: string
url:
config:
f("name=$(.namespace) tags.cluster=$(.cluster) type=Kubernetes::Namespace",
row)
- card:
position: body
description: The number of ready replicas.
name: readyReplicas
type: string
- card:
position: body
description: The desired number of replicas.
name: replicas
type: string
- card:
position: subtitle
description: The status of the deployment.
filter:
type: multiselect
icon: row.health
name: status
type: status
- card:
useForAccent: true
description: The health of the deployment.
filter:
type: multiselect
hidden: true
name: health
type: health
- card:
position: headerRight
description: CPU usage across all pods.
gauge:
thresholds:
- color: "#8BC34A"
percent: 0
- color: "#F4B23C"
percent: 70
- color: "#F25C54"
percent: 85
name: cpu
type: gauge
unit: millicore
- card:
position: headerRight
description: Memory usage across all pods.
gauge:
max: row.memory_limit
thresholds:
- color: green
percent: 0
- color: orange
percent: 75
- color: red
percent: 90
name: memory
type: gauge
unit: bytes
- card:
position: body
description: The creation timestamp.
name: createdAt
type: datetime
- card:
position: body
description: The last updated time.
name: lastUpdated
type: datetime
display:
icon: kubernetes::deployment
sidebar: true
title: Deployments
mapping:
cpu: row.cpu
createdAt: row.created_at
lastUpdated: row.updated_at
memory: row.memory
memory_limit: row.memory_limit
merge: |
SELECT
deployments.id,
deployments.name,
json_extract(deployments.tags, '$.namespace') AS namespace,
json_extract(deployments.tags, '$.cluster') AS cluster,
deployments.status,
deployments.health,
deployments.created_at,
deployments.updated_at,
CAST(CASE
WHEN json_extract(deployments.config, '$.status.readyReplicas') IS NULL THEN 0
ELSE CAST(json_extract(deployments.config, '$.status.readyReplicas') AS INTEGER)
END AS TEXT) AS readyReplicas,
CAST(json_extract(deployments.config, '$.spec.replicas') AS TEXT) AS replicas,
COALESCE(cpu_usage.value, 0) as cpu,
COALESCE(memory_usage.value, 0) as memory,
COALESCE(memory_limit.value, 0) as memory_limit
FROM deployments
LEFT JOIN cpu_usage_by_deployment AS cpu_usage
ON deployments.name = cpu_usage.deployment
AND json_extract(deployments.tags, '$.namespace') = cpu_usage.namespace
LEFT JOIN memory_usage_by_deployment AS memory_usage
ON deployments.name = memory_usage.deployment
AND json_extract(deployments.tags, '$.namespace') = memory_usage.namespace
LEFT JOIN memory_limit_by_deployment AS memory_limit
ON deployments.name = memory_limit.deployment
AND json_extract(deployments.tags, '$.namespace') = memory_limit.namespace

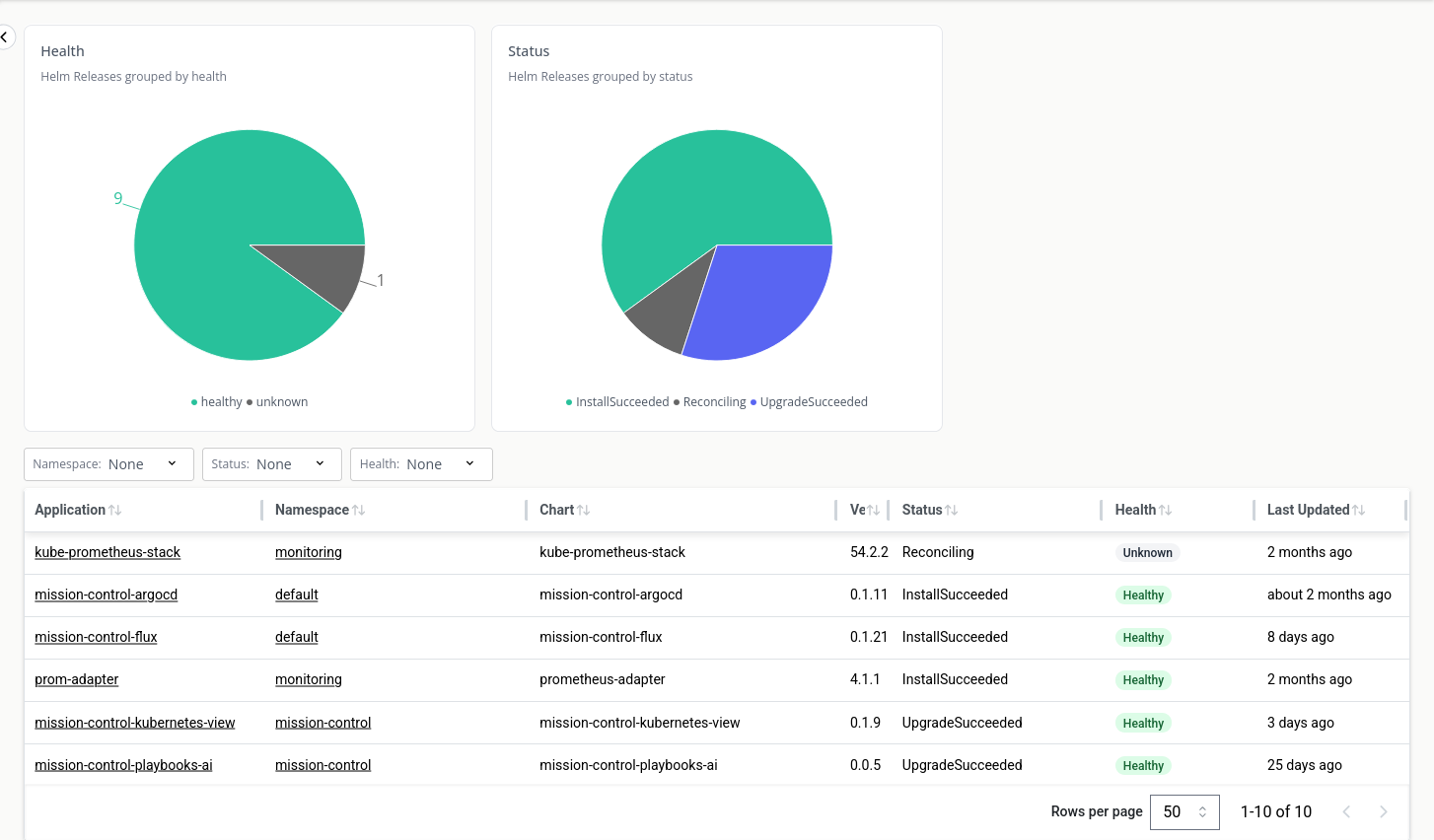

panels:
- description: Deployments grouped by health
name: Health
piechart:
colors:
healthy: "#28C19B"
unhealthy: "#F04E6E"
unknown: "#666666"
warning: "#F4B23C"
showLabels: true
query: SELECT COUNT(*) AS count, health FROM deployments GROUP BY health
type: piechart
- description: Deployments grouped by status
name: Status
query: SELECT COUNT(*) AS count, status FROM deployments GROUP BY status
type: piechart
queries:
cpu_usage_by_deployment:
columns:
deployment: string
namespace: string
value: decimal
prometheus:
connection: connection://mc/prometheus
query: |
sum by (namespace, deployment) (
label_replace(
rate(container_cpu_usage_seconds_total{
container!="",
container!="POD"
}[5m]),
"deployment", "$1", "pod", "^(.*)-[0-9a-f]+-[0-9a-z]+$"
)
) * 1000
deployments:
configs:
agent: all
tagSelector: cluster=$(.var.cluster)
types:
- Kubernetes::Deployment
memory_limit_by_deployment:
columns:
deployment: string
namespace: string
value: decimal
prometheus:
connection: connection://mc/prometheus
query: |
sum by (namespace, deployment) (
label_replace(
kube_pod_container_resource_limits{
resource="memory",
container!="",
container!="POD"
},
"deployment", "$1", "pod", "^(.*)-[0-9a-f]+-[0-9a-z]+$"
)
)
memory_usage_by_deployment:
columns:
deployment: string
namespace: string
value: decimal
prometheus:
connection: connection://mc/prometheus
query: |
sum by (namespace, deployment) (
label_replace(
container_memory_working_set_bytes{
container!="",
container!="POD"
},
"deployment", "$1", "pod", "^(.*)-[0-9a-f]+-[0-9a-z]+$"
)
)
templating:
- key: cluster
label: Cluster
valueFrom:
config:
agent: all
types:
- Kubernetes::Cluster
